Product Overview

    TMR1302BL is an ultra-low power, full-pole magnetic switch with linear magnetic field output, utilizing Tunneling Magnetoresistance (TMR) and CMOS technologies. The TMR1302BL chip integrates a TMR sensor and signal processing circuit internally. It outputs a switch signal while simultaneously providing a linear magnetic field strength signal through a single terminal, allowing it to be used as both a magnetic linear sensor and a switch sensor.

    TMR1302BL is an ideal choice for numerous low-power, high-performance applications due to its wide operating voltage range, microampere-level operating current, high response frequency, and wide operating temperature range. The packaging form of TMR1302BL is SOT23-5, and the corresponding product model is TMR1302BLS.

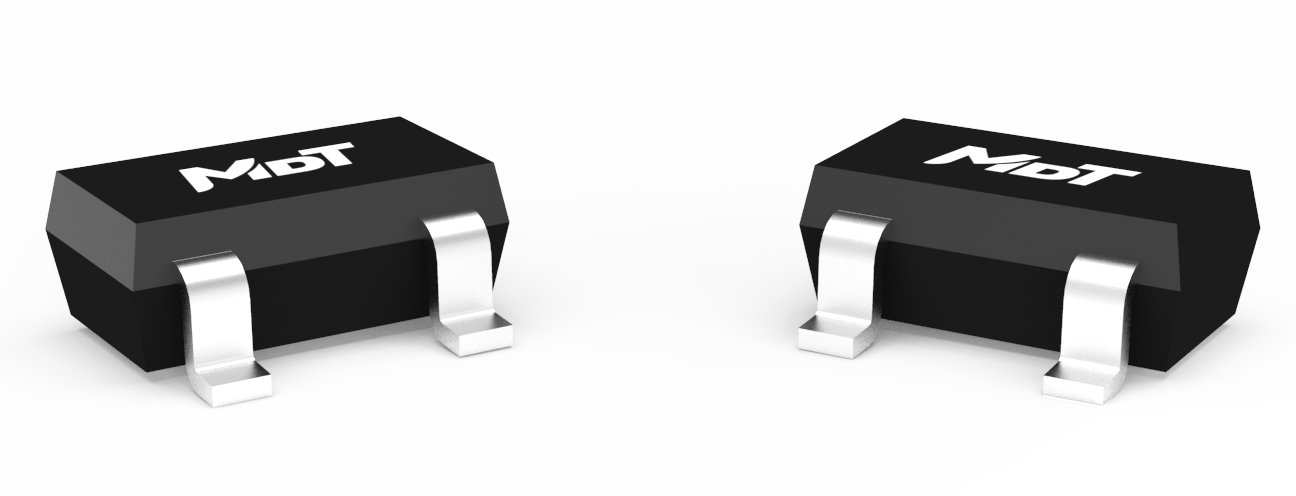

SOT23-3

Product Features

• Tunneling magnetoresistance (TMR) technology
• Ultra-low power consumption (1.5 μA in full-time operation)
• Simultaneously output switch signal and linear signal
• Wide operating voltage range (1.8~5.5 VDC)
• Compliant with RoHS & REACH
• All-pole magnetic switch
• 1 kHz high-frequency response
• High sensitivity, low switching point
• Excellent temperature stability

Typical Applications

• traffic detection
• speed detection
• proximity switch
• Linear and rotational position detection
