Product Overview

    The TMR1223 magnetic switch chip is a bipolar latch-type magnetic switch chip that integrates a tunnel magnetoresistive (TMR) sensor and CMOS circuitry. It can convert changing magnetic field signals into digital voltage signals to achieve precise position detection. This product includes X-axis and Y-axis dual-axis, dual-channel, bipolar latch switch signal output, with independent power supply and output for each channel.

    The chip operates within a voltage range of 3V to 40V, with a low single-axis static supply current of 0.5 mA, while maintaining a magnetic signal response frequency of 100 kHz. The TMR1223 chip is housed in a standard DFN8L (3mmx3mm x0.75mm) package.

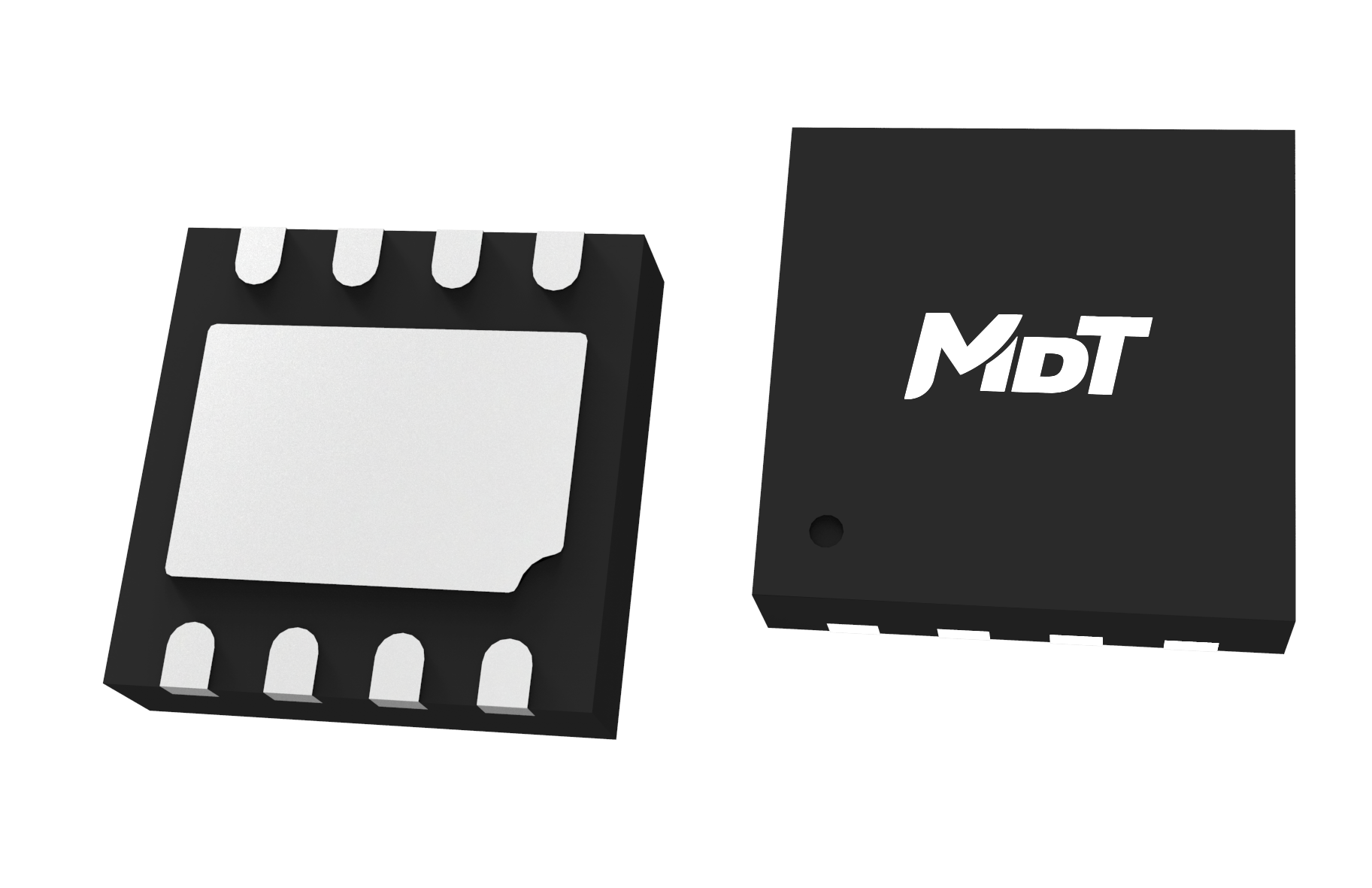

DFN8L

Product Features

1. Tunneling magnetoresistance (TMR) technology
2. High frequency response (up to 100 kHz)
3. Wide operating voltage (3 V~ 40 V)
4. Open Drain  Open-drain output
5. Excellent temperature stability
6. Compliant with RoHS & REACH
7. Low power consumption (single-axis quiescent current 0.5 mA)
8. Bipolar latching magnetic switch
9. Reverse voltage (25 V)
10. High sensitivity
11. Excellent resistance to external magnetic fields

Typical Applications

1. proximity switch
2. Linear and rotational direction detection
3. Speed detection
4. Linear and rotational position detection
